100lb. Value 45MM Medium Duty Full Extension Slide (PT2)
Products / Ball Bearing Slides / 45MM Ball Bearing Slides

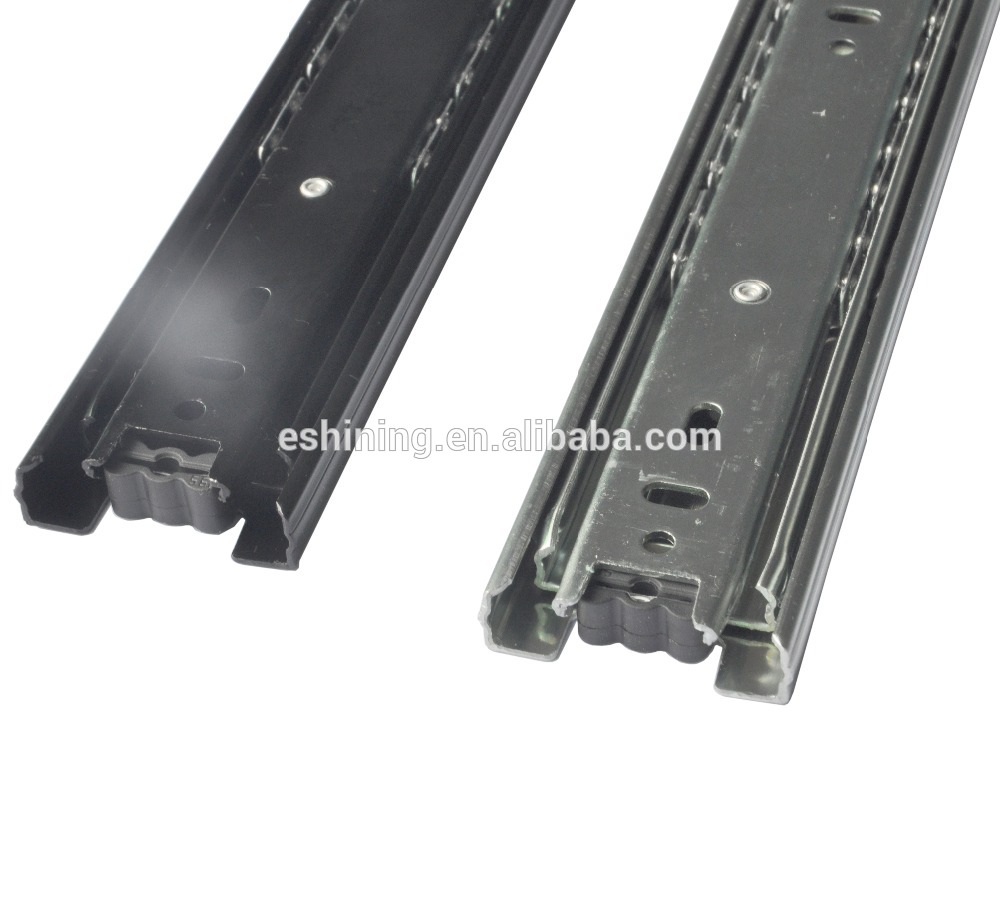

100lb. Value 45MM Medium Duty Full Extension Slide (PT2)

Product Name:


100lb. Value 45MM Medium Duty Full Extension Slide (PT2)

Features:


Travel:  Full Extension
Profile Height: 45mm
Profile Thickness: 1.0*1.0*1.2mm
Mounting: 32mm hole pattern with breather tabs
Side Clearance: 12.7mm (.50 ") plus .8mm (.03 ") minus 0
Material: Cold Rolled Steel
Finishes:  Zinc, Black
Lengths: Metric 300mm (12") -600mm ( 24")
Static Load: 45kg/ 100lbs (18")
Dynamic Load Capacity: 35kg /80lbs)/ (18"- 50k cycles)
Salt spray test: Passed over 48 hours salt spray test
Test Certification: Passed 50,000 cycles by SGS

Applications:


Kitchen & bath cabinets
Residential furniture
Office furniture files & Tool storage

Packaging Units:


Unit of Measure: Set (Pair)
Bulk Carton (B):  10 Sets per carton

Item-No.                                                  Length           Travel
VAL-4503-C-1-BS-2-ZN / BK-300-B      300mm         300mm
VAL-4503-C-1-BS-2-ZN / BK-350-B      350mm         350mm
VAL-4503-C-1-BS-2-ZN / BK-400-B      400mm         400mm
VAL-4503-C-1-BS-2-ZN / BK-450-B      450mm         450mm
VAL-4503-C-1-BS-2-ZN / BK-500-B      500mm         500mm
VAL-4503-C-1-BS-2-ZN / BK-550-B      550mm         550mm
VAL-4503-C-1-BS-2-ZN / BK-600-B      600mm         600mm
