100lb. 45mm INTERLOCKING Full Extension Slide
Products / Ball Bearing Slides / 45MM Ball Bearing Slides

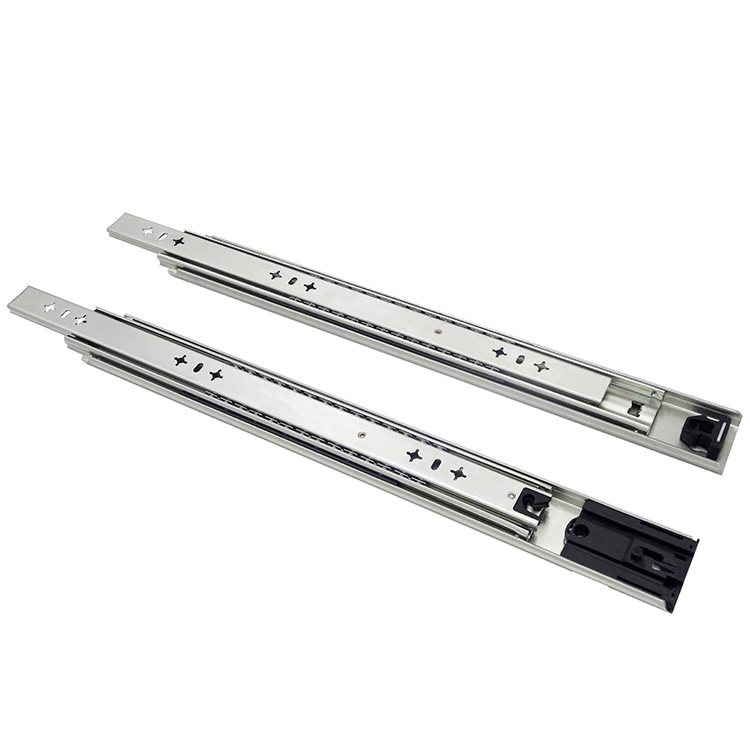

100lb. 45mm INTERLOCKING Full Extension Slide

Features:

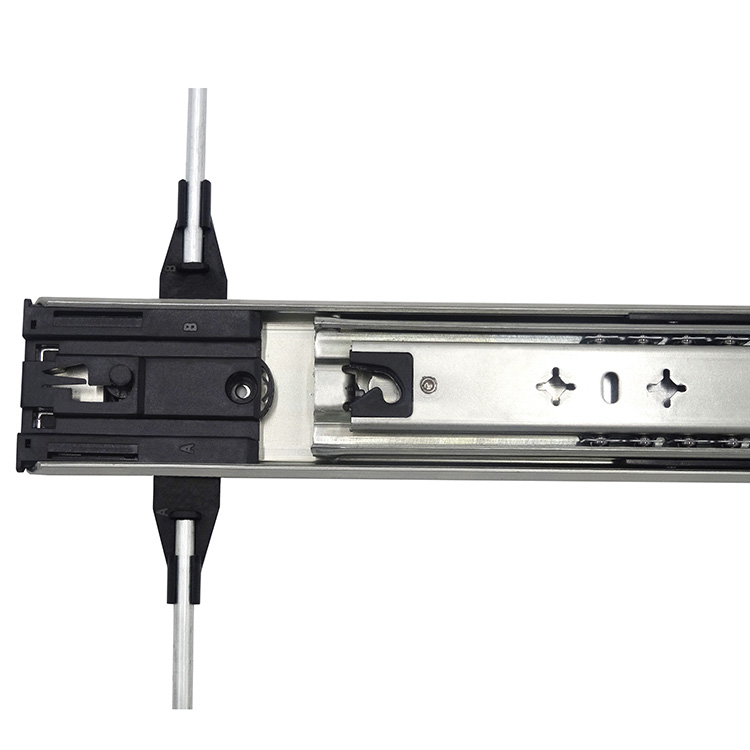

Model: INTERLOCK (Anti-Tilt) System
Travel:  Full Extension
Profile Height: 45mm
Profile Thickness: 1.2*1.2*1.4mm
Mounting: 32mm hole pattern
Side Clearance: 12.7mm (.50 ") plus .8mm (.03 ") minus 0
Material: Cold Rolled Steel
Finishes:  Zinc, Black
Lengths: Metric 300mm (12") -1000mm (40") in 50mm increments
Load Capacity: (45kg-100lbs)/18"
Salt spray test: Passed over 48 hours salt spray test
Test Certification: Passed 50,000 cycles by SGS

Applications:


Kitchen & bath cabinets
Residential furniture
Office Furniture Pedestals and Towers, Tool storage and Industrial Storage

Packaging Units:


Unit of Measure: Set (Pair)

Item-No.                                                  Length           Travel
ADL-4510-J-1-INT-2-ZN /BK-300-B        300mm          300mm
ADL-4510-J-1-INT-2-ZN /BK-350-B        350mm          350mm
ADL-4510-J-1-INT-2-ZN /BK-400-B        400mm          400mm
ADL-4510-J-1-INT-2-ZN /BK-450-B        450mm          450mm
ADL-4510-J-1-INT-2-ZN /BK-500-B        500mm          500mm
ADL-4510-J-1-INT-2-ZN /BK-550-B        550mm          550mm
ADL-4510-J-1-INT-2-ZN /BK-600-B        600mm          600mm
ADL-4510-J-1-INT-2-ZN /BK-650-B        650mm          650mm
ADL-4510-J-1-INT-2-ZN /BK-700-B        700mm          700mm
