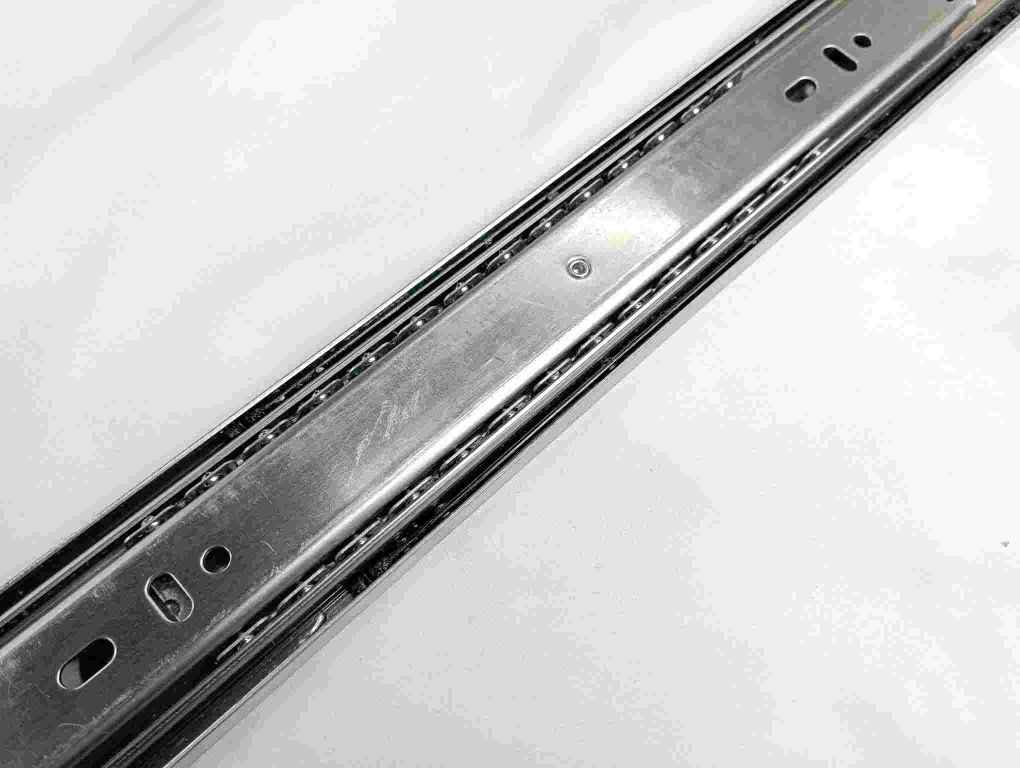

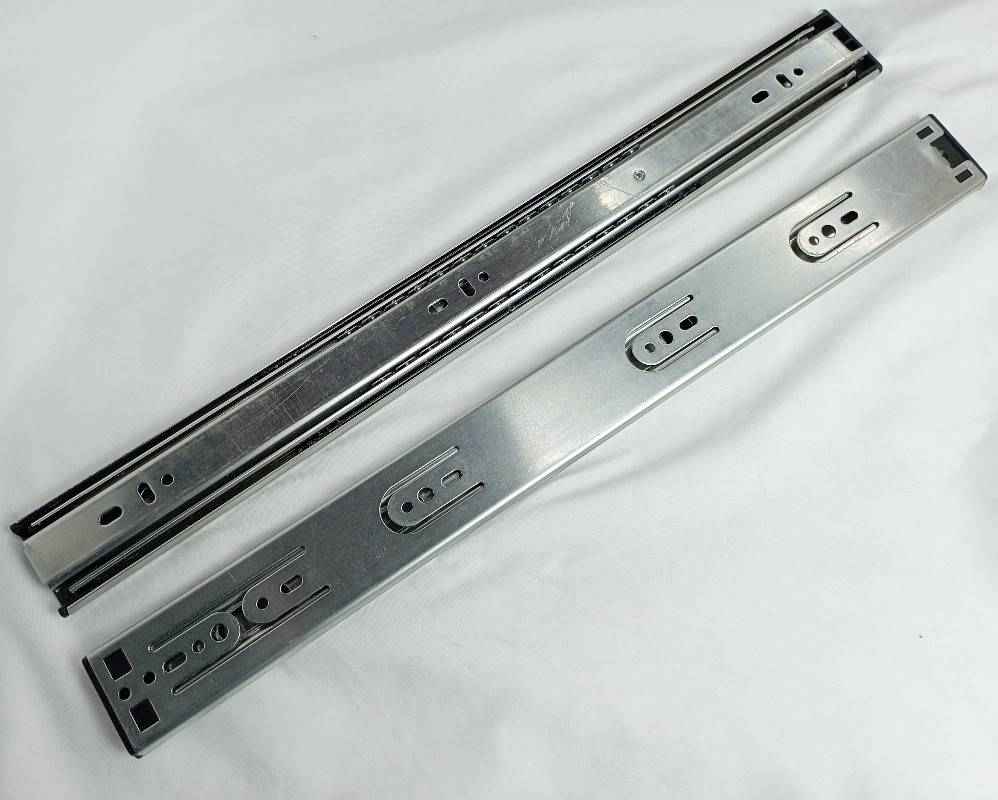

Products / Ball Bearing Slides / 45MM Ball Bearing Slides slide with anticollision feature Product Name:45MM Anti-collision Ball Bearing Slide
Features:Anti-collision Travel: Full Extension Profile Height: 45mm Profile Thickness: 1.0*1.0*1.2mm/ 1.2*1.2*1.4mm Material: Cold Rolled Steel Finishes: Zinc, Black Lengths: Metric 250mm (10") -600mm ( 24") Static Load: 45kg/ 100lbs (18") Dynamic Load Capacity: 35kg /80lbs)/ (18"- 50k cycles) Salt spray test: Passed over 48 hours salt spray test Test Certification: Passed 50,000 cycles by SGS
Applications:Kitchen & bath cabinets Residential furniture Office furniture files & Tool storage |
|
