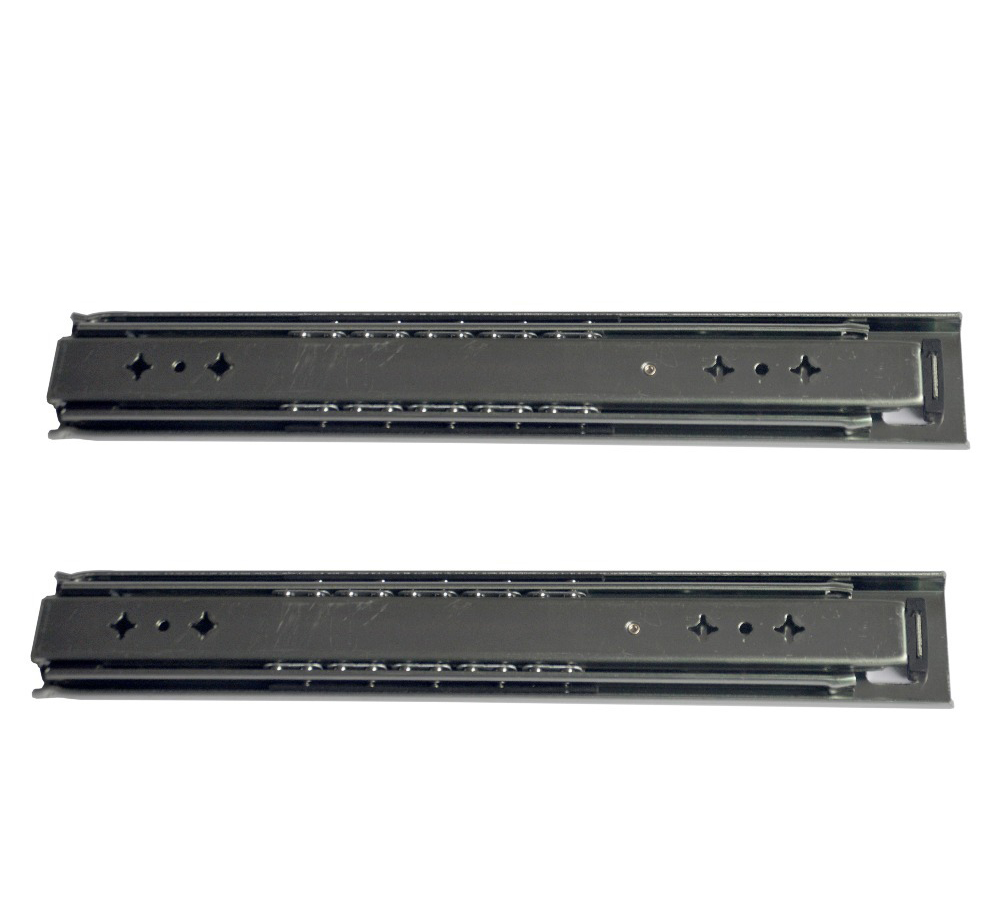

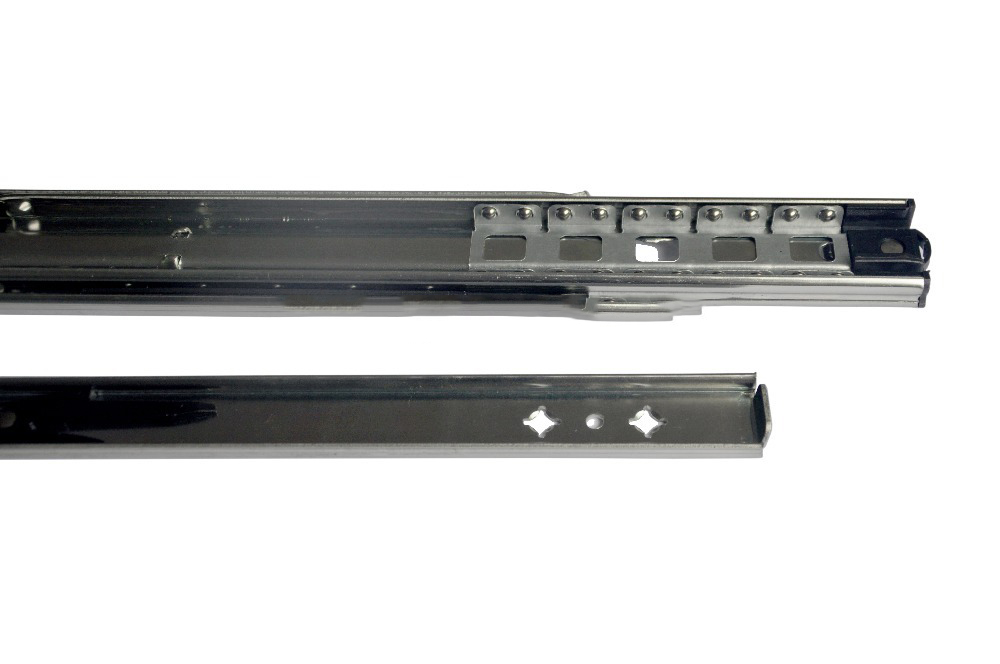

220lb. 53MM Heavy Duty Full Extension Slide (PT1)
Products / Ball Bearing Slides / 53MM Ball Bearing Slides

220lb. 53MM Heavy Duty Full Extension Slide (PT1)

Product Name:
220lb. 53MM Heavy Duty Full Extension Slide (PT1)

Features:


Travel:  Full Extension
Profile Height: 53mm
Profile Thickness: 2.0*2.0*2.0mm
Mounting: 32mm hole pattern
Side Clearance: 19.0mm (.75 ") plus .8mm (.03 ") minus 0
Material: Cold Rolled Steel
Finishes:  Zinc, Black
Lengths: Metric 300mm (12") -900mm ( 36")
Load Capacity: (100kg-220lbs.)/16"
Salt spray test: Passed over 48 hours salt spray test
Test Certification: Passed 50,000 cycles by SGS

Applications:


Kitchen & bath cabinets
Residential furniture
Office furniture files & Tool storage

Packaging Units:


Unit of Measure: Set (Pair)
Bulk Carton (B):
300, 350, 400, 450mm: 10 sets/ carton
500, 550, 600mm: 8 sets/ carton
900mm: 4 sets/ carton


Item-No.                                                Length           Travel
ADL-5301-R-1-BS-2-ZN / BK-300-B      300mm          300mm
ADL-5301-R-1-BS-2-ZN / BK-350-B      350mm          350mm
ADL-5301-R-1-BS-2-ZN / BK-400-B      400mm          400mm
ADL-5301-R-1-BS-2-ZN / BK-450-B      450mm          450mm
ADL-5301-R-1-BS-2-ZN / BK-500-B      500mm          500mm
ADL-5301-R-1-BS-2-ZN / BK-550-B      550mm          550mm
ADL-5301-R-1-BS-2-ZN / BK-600-B      600mm          600mm
ADL-5301-R-1-BS-2-ZN / BK-650-B      650mm          650mm
ADL-5301-R-1-BS-2-ZN / BK-700-B      700mm          700mm
ADL-5301-R-1-BS-2-ZN / BK-750-B      750mm          750mm
ADL-5301-R-1-BS-2-ZN / BK-800-B      800mm          800mm
ADL-5301-R-1-BS-2-ZN / BK-850-B      850mm          850mm
ADL-5301-R-1-BS-2-ZN / BK-900-B      900mm          900mm
ADL-5301-R-1-BS-2-ZN / BK-950-B      950mm          950mm
ADL-5301-R-1-BS-2-ZN / BK-1000-B   1000mm        1000mm
ADL-5301-R-1-BS-2-ZN / BK-1100-B   1100mm        1100mm
ADL-5301-R-1-BS-2-ZN / BK-1200-B   1200mm        1200mm
ADL-5301-R-1-BS-2-ZN / BK-1300-B   1300mm        1300mm
ADL-5301-R-1-BS-2-ZN / BK-1400-B   1400mm        1400mm
ADL-5301-R-1-BS-2-ZN / BK-1500-B   1500mm        1500mm
