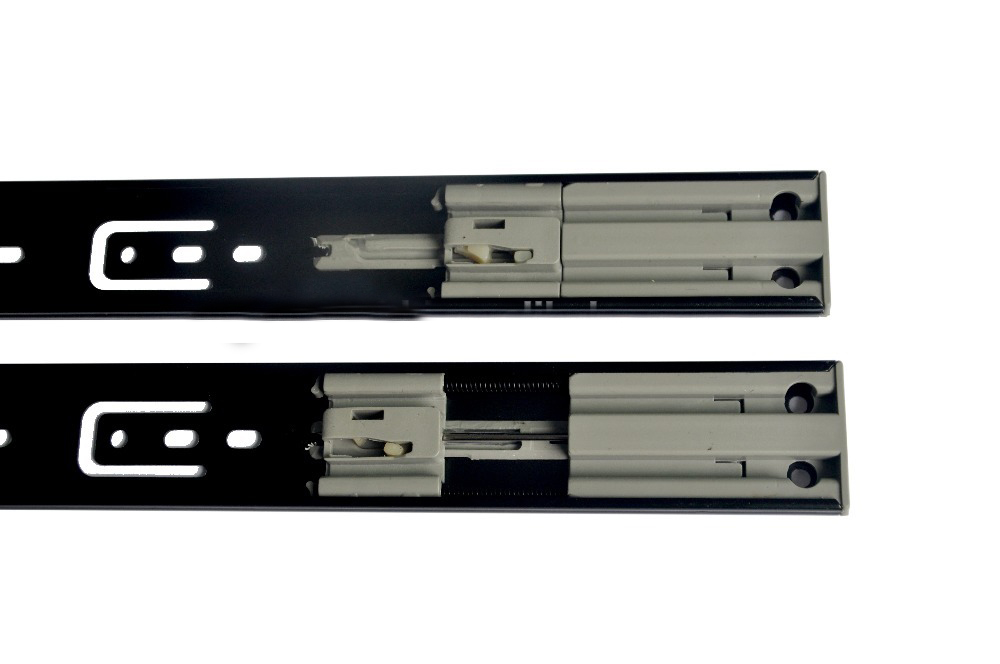

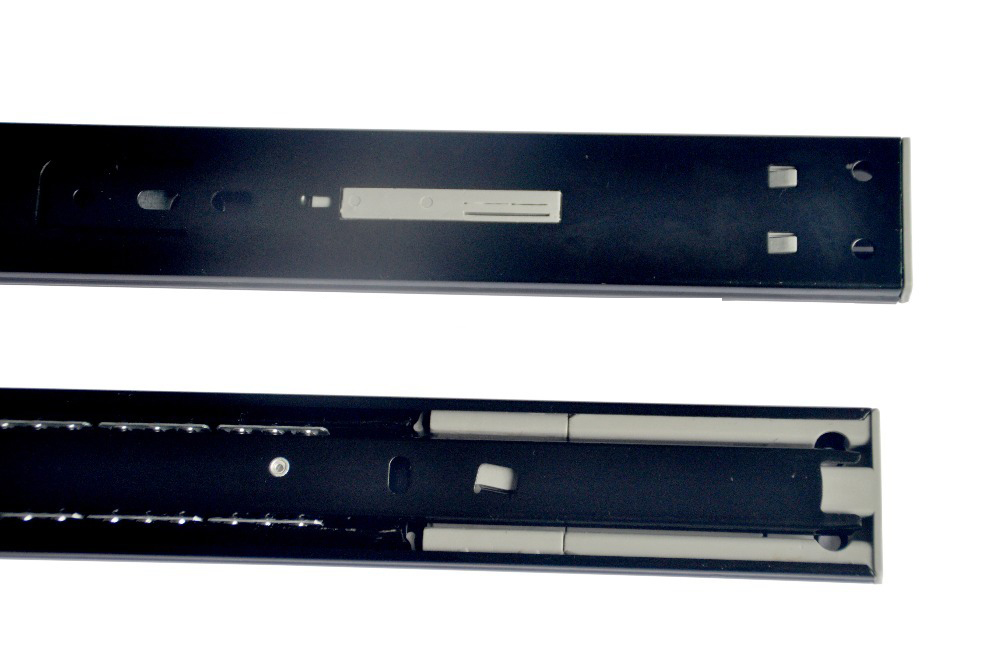

44lb. 36MM Light Duty SOFT-Close Full Extension Slide (HC1)
Products / Ball Bearing Slides / 36MM/27MM Ball Bearing Slides

44lb. 36MM Light Duty SOFT-Close Full Extension Slide (HC1)

Product Name:


44lb. 36MM Light Duty SOFT-Close Full Extension Slide (HC1)

Features:


SOFT-Close Technology
Travel:  Full Extension
Profile Height: 36mm
Profile Thickness: 1.0*1.0*1.2mm
Mounting: 32mm hole pattern with breather tabs
Side Clearance: 12.7mm (.50 ") plus .8mm (.03 ") minus 0
Material: Cold Rolled Steel
Finishes:  Zinc, Black
Lengths: Metric 300mm (12") -500mm ( 20")
Load Capacity: (20kg-44lbs)/16"
Salt spray test: Passed over 48 hours salt spray test
Test Certification: Passed 50,000 cycles by SGS

Applications:


Kitchen & bath cabinets
Residential furniture
Office furniture files & Tool storage

Packaging Units:


Unit of Measure: Set (Pair)
Bulk Carton (B):  10 Sets per carton

Item-No.                                                  Length           Travel
ADL-3600-G-1-SC-2-ZN / BK-300-B      300mm         300mm
ADL-3600-G-1-SC-2-ZN / BK-350-B      350mm         350mm
ADL-3600-G-1-SC-2-ZN / BK-400-B      400mm         400mm
ADL-3600-G-1-SC-2-ZN / BK-450-B      450mm         450mm
ADL-3600-G-1-SC-2-ZN / BK-500-B      500mm         500mm
