55lb. 36MM Light Duty Full Extension Slide (PT1-36-B)
Products / Ball Bearing Slides / 36MM/27MM Ball Bearing Slides

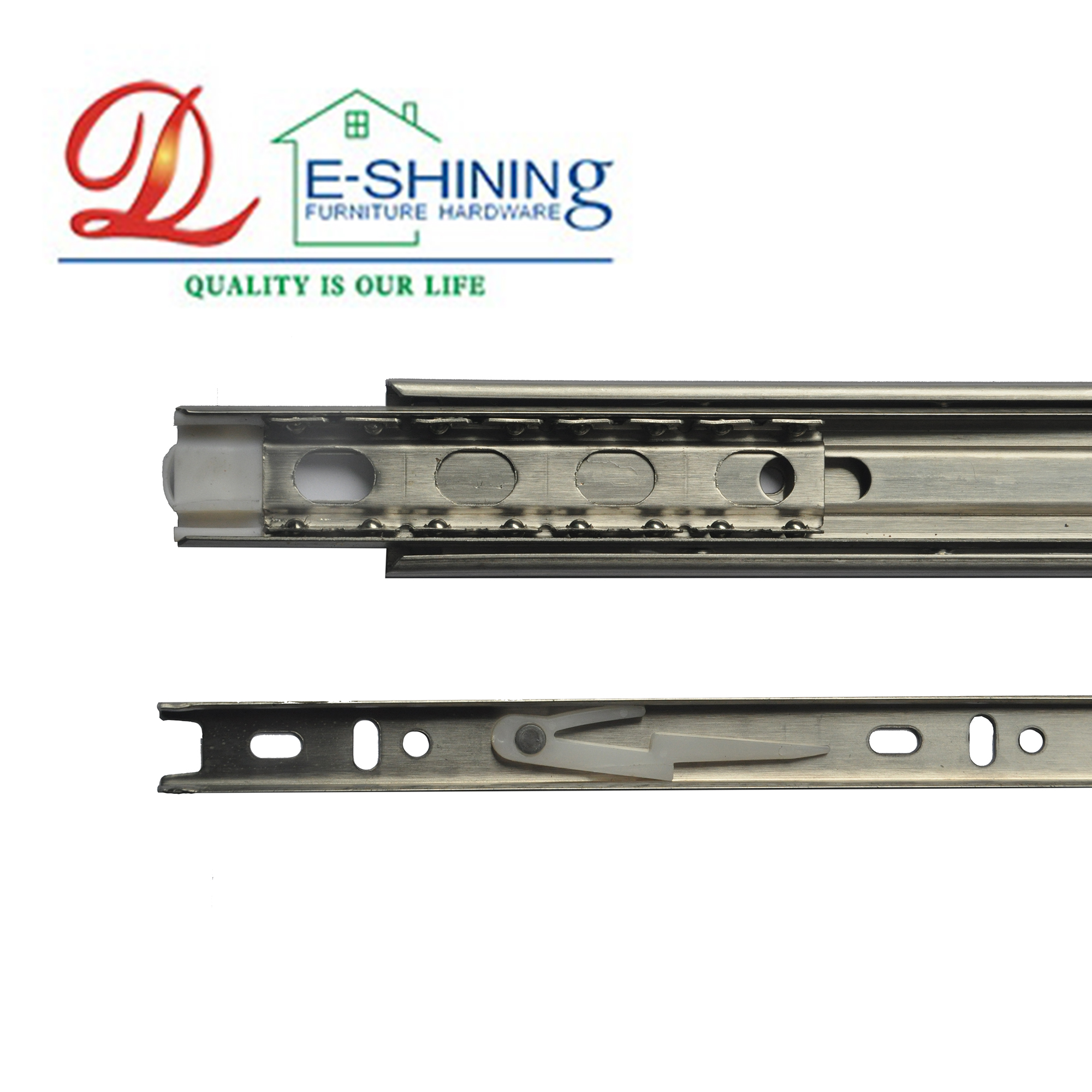

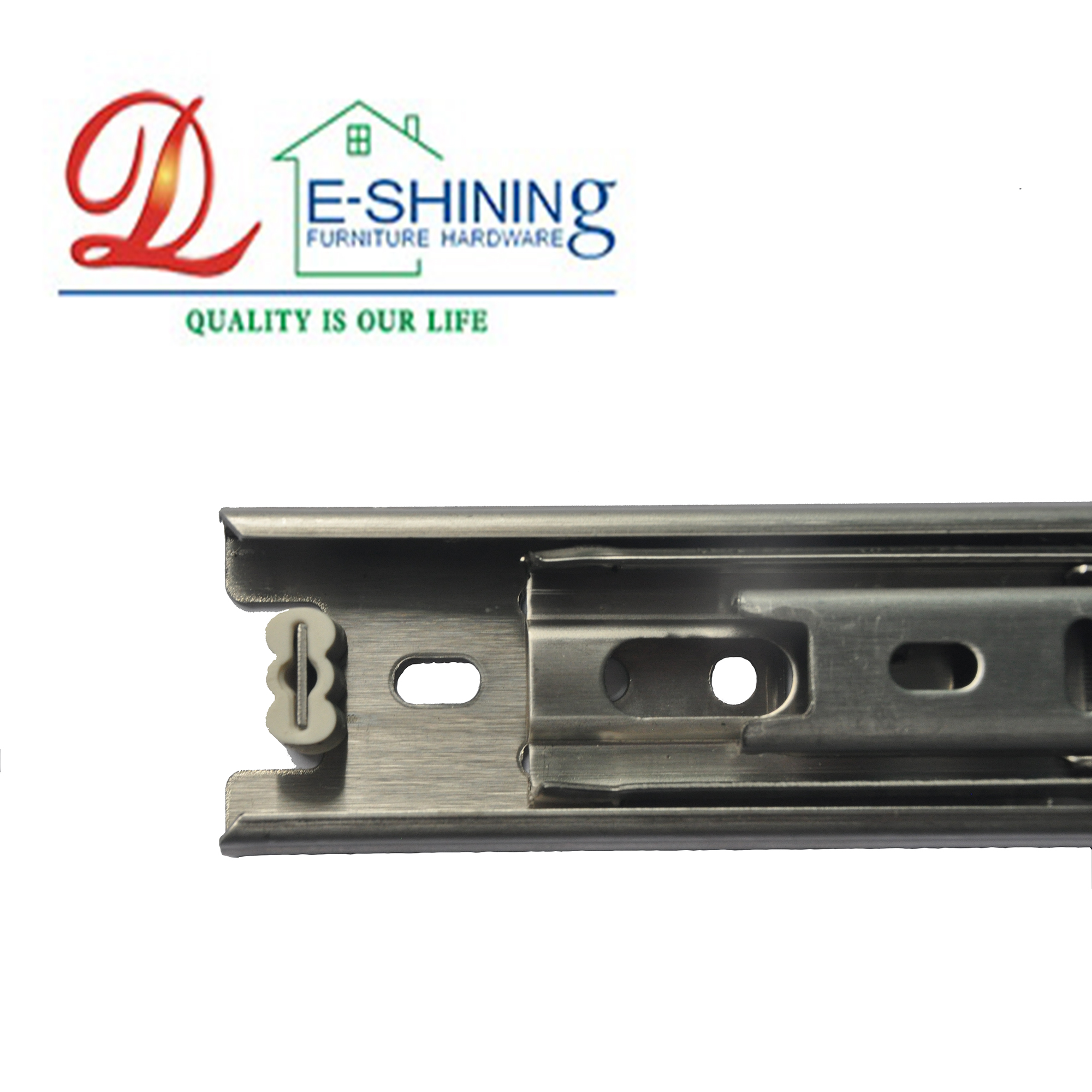

55lb. 36MM Light Duty Full Extension Slide (PT1-36-B)

Product Name:


55lb. 36MM Light Duty Full Extension Slide (PT1-36-B)

Features:


Travel:  Full Extension
Profile Height: 36mm
Profile Thickness: 1.0*1.0*1.2mm
Mounting: 32mm hole pattern with breather tabs
Side Clearance: 12.7mm (.50 ") plus .8mm (.03 ") minus 0
Material: Cold Rolled Steel
Finishes:  Zinc, Black
Lengths: Metric 200mm (08") -500mm ( 20")
Load Capacity: (25kg-55lbs)/16"
Salt spray test: Passed over 48 hours salt spray test
Test Certification: Passed 50,000 cycles by SGS

Applications:


Kitchen & bath cabinets
Residential furniture
Office furniture files & Tool storage

Packaging Units:


Unit of Measure: Set (Pair)
Bulk Carton (B):  10 Sets per carton

Item-No.                                                 Length           Travel
VAL-3600-C-1-BS-2-ZN / BK-200-B      200mm          200mm
VAL-3600-C-1-BS-2-ZN / BK-250-B      250mm          250mm
VAL-3600-C-1-BS-2-ZN / BK-300-B      300mm          300mm
VAL-3600-C-1-BS-2-ZN / BK-350-B      350mm          350mm
VAL-3600-C-1-BS-2-ZN / BK-400-B      400mm          400mm
VAL-3600-C-1-BS-2-ZN / BK-450-B      450mm          450mm
VAL-3600-C-1-BS-2-ZN / BK-500-B      500mm          500mm
