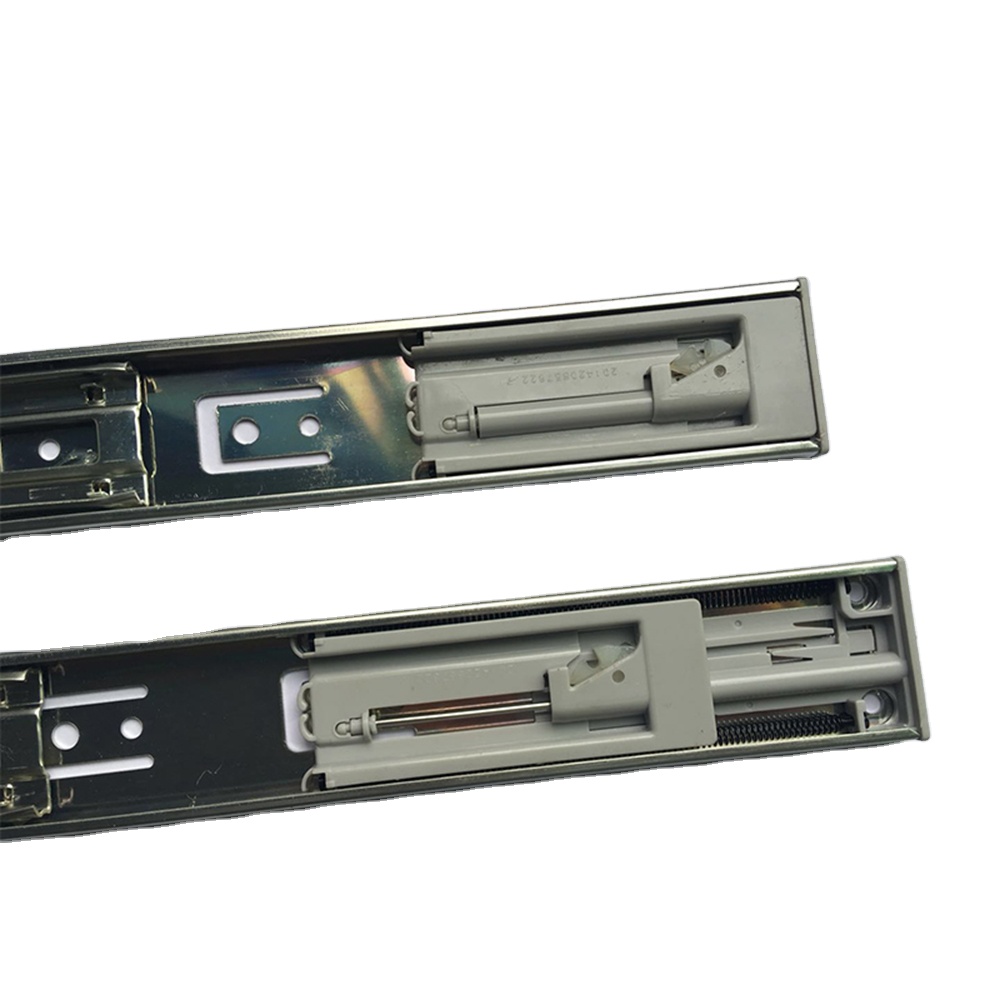

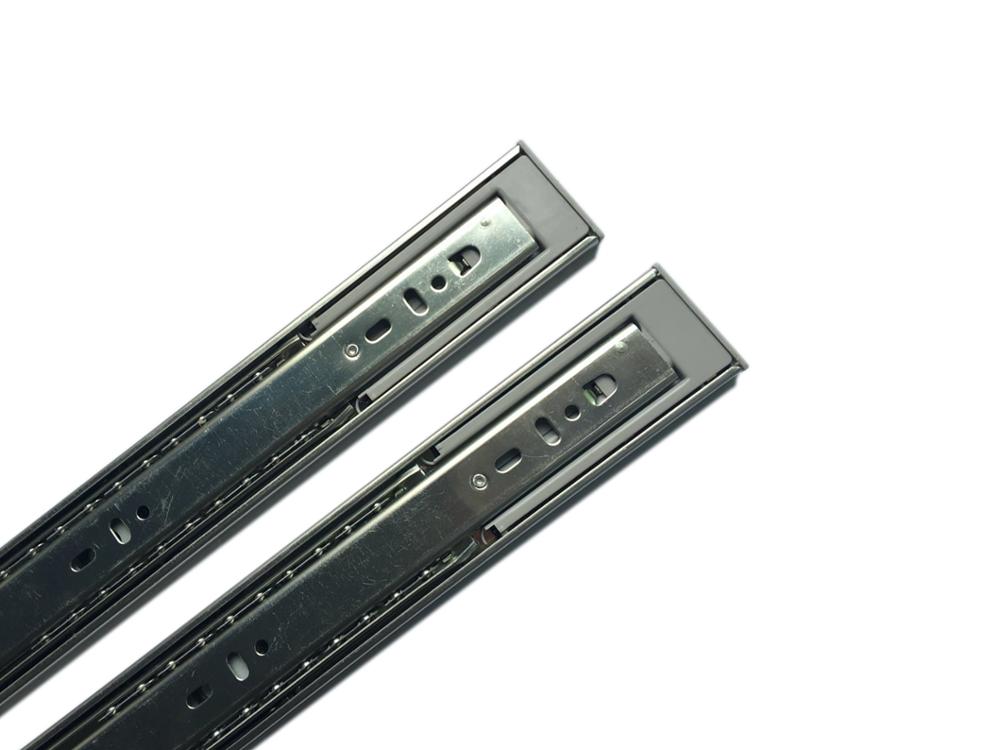

Products / Ball Bearing Slides / 45MM Ball Bearing Slides 100lb. 45mm Medium Duty SOFT-Close Full Extension Slide (HC2) Product Name:100lb. 45mm Medium Duty SOFT-Close Full Extension Slide (HC2)
Features:SOFT-Close Technology Travel: Full Extension Profile Height: 45mm Profile Thickness: 1.2*1.2*1.4mm Mounting: 32mm hole pattern with breather tabs Side Clearance: 12.7mm (.50 ") plus .8mm (.03 ") minus 0 Material: Cold Rolled Steel Finishes: Zinc, Black Lengths: Metric 300mm (12") -600mm ( 24") Load Capacity: (45kg-100lbs)/18" Salt spray test: Passed over 48 hours salt spray test Test Certification: Passed 50,000 cycles by SGS
Applications:Kitchen & bath cabinets Residential furniture Office furniture files & Tool storage
Packaging Units:Unit of Measure: Set (Pair) Bulk Carton (B): 10 Sets per carton Item-No. Length Travel |
|
