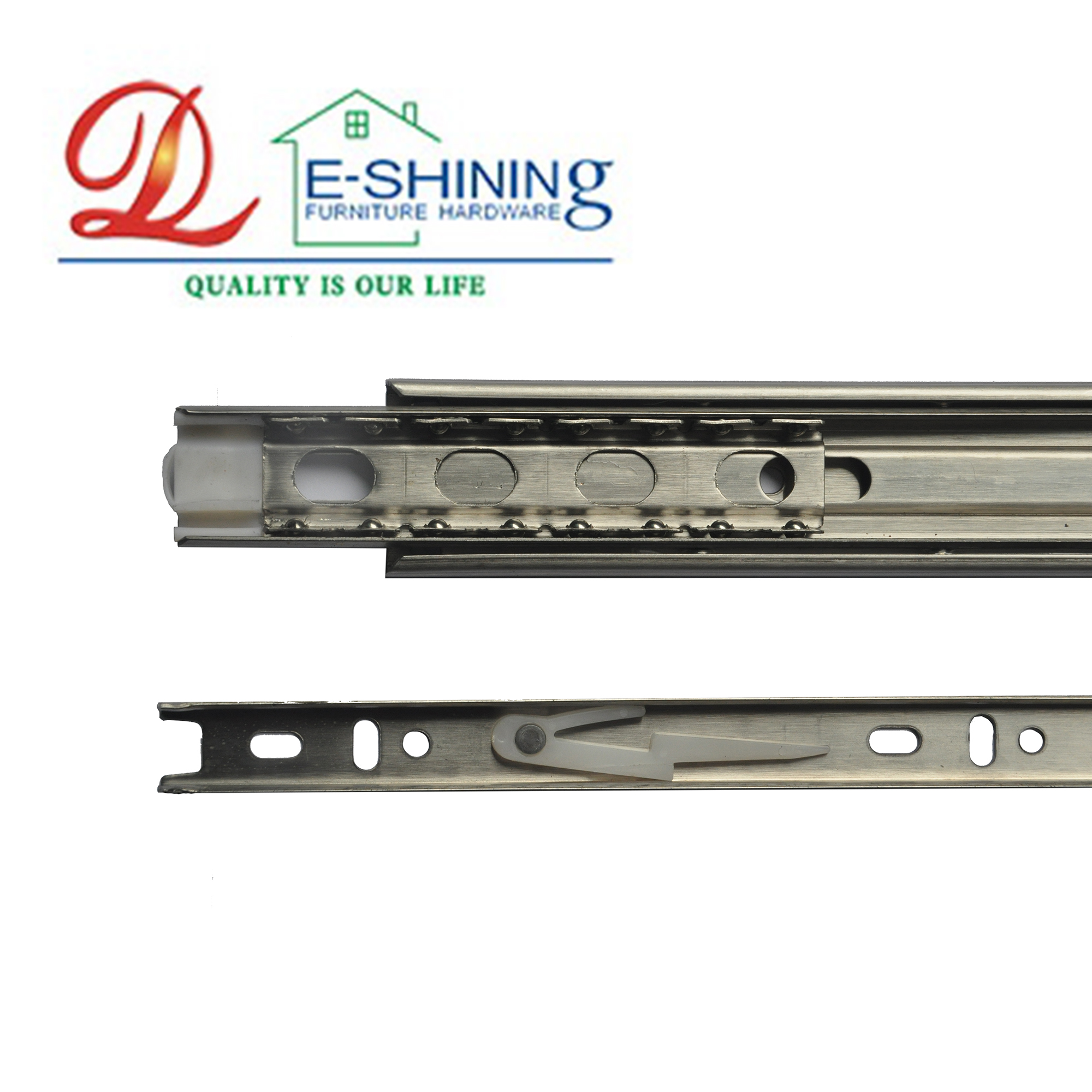

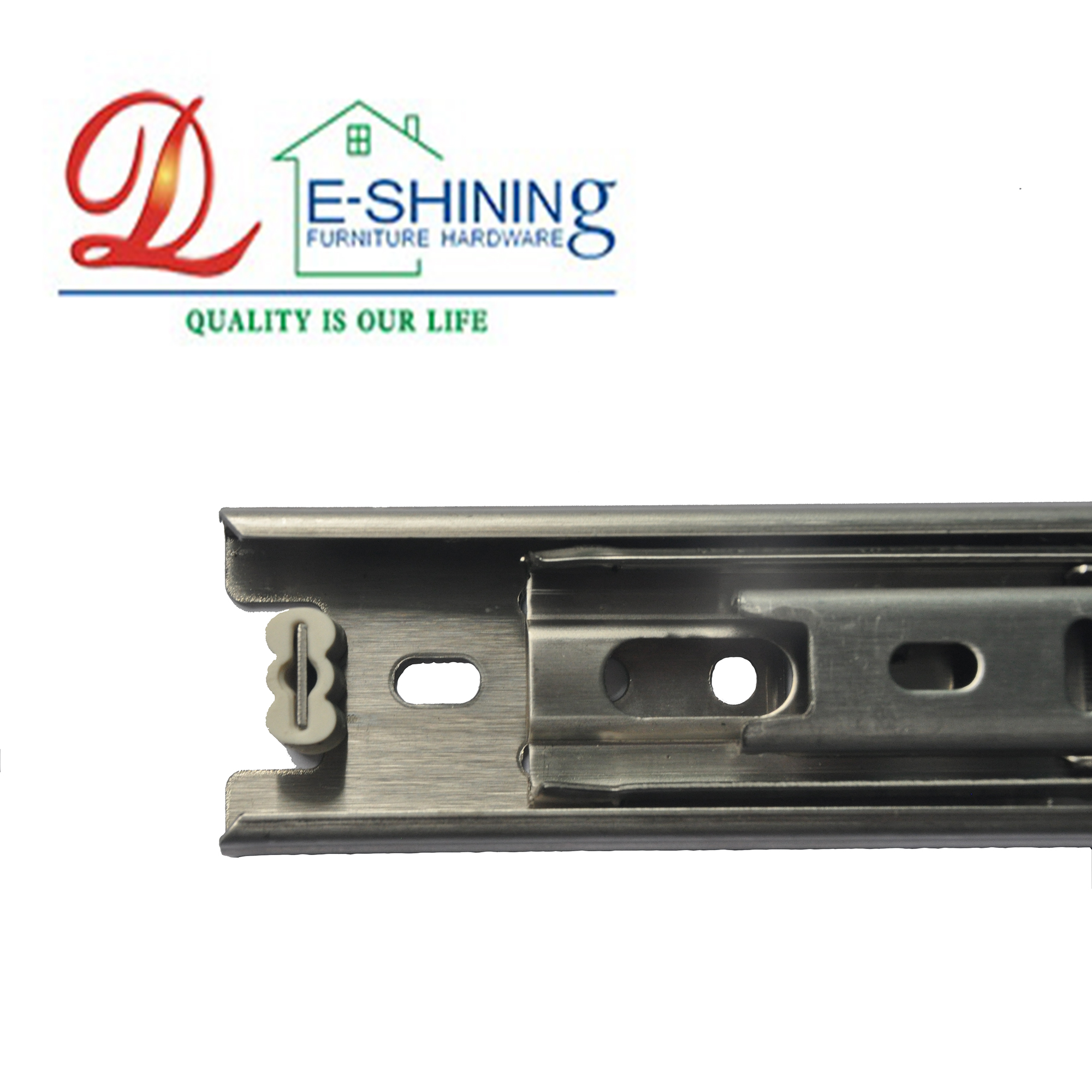

Products / Ball Bearing Slides / 36MM/27MM Ball Bearing Slides 66lb. 36MM Light Duty Full Extension Slide (PT1-36-H) Product Name:66lb. 36MM Light Duty Full Extension Slide (PT1-36-H)
Features:Travel: Full Extension Profile Height: 36mm Profile Thickness: 1.2*1.0*1.2mm Mounting: 32mm hole pattern with breather tabs Side Clearance: 12.7mm (.50 ") plus .8mm (.03 ") minus 0 Material: Cold Rolled Steel Finishes: Zinc, Black Lengths: Metric 200mm (08") -500mm ( 20") Load Capacity: (30kg-66lbs)/16" Salt spray test: Passed over 48 hours salt spray test Test Certification: Passed 50,000 cycles by SGS
Applications:Kitchen & bath cabinets Residential furniture Office furniture files & tool cabinet drawers
Packaging Units:Unit of Measure: Set (Pair) Bulk Carton (B): 10 Sets per carton Item-No. Length Travel |
|
